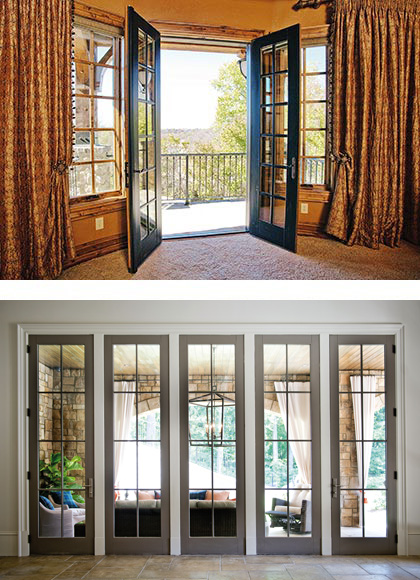

The highlight of a house. Windsor offers several options for Pinnacle swinging patio doors. Choose from in-swing or out-swing models. Add architectural interest with a curved seg-top patio door. Select 1 or 2 operational panels. Include up to 4 panels in a single frame. Go traditional with our standard door panel, or make it contemporary and invite more light with our narrow stile selection. For safety, we can install multi-point locking hardware – for style, we can accent your doors with a customized transom, radius or sidelites. The design options continue with up to 50 different exterior clad colors and finishes, several hardware styles, multiple hardware finishes and numerous grille options.
- Warmth and beauty of Clear Select Pine, Natural Alder or Douglas Fir interior; can be painted or stained
- Clad units offer a strong, durable extruded aluminum exterior panel and frame for low maintenance
- Optional multi-point locking system features three-point jamb-engaged tongue system for uncompromised security. Also available: single point, single bore, double bore and no bore
- Extended panel drip edge sheds water away from panel at the sill for enhanced protection from water
- Dual seal frame weatherstrip at panel face and edge improves air and thermal performance
- 1/2" and 3/4" lite panel available with flat or split panel option
- Choose from 2 door panel options:
- Standard Stile: 5-3/16” top rail, 8-9/16 bottom rail and 4-7/8” stiles
- Narrow Stile: 5-3/16” top rail, 5-3/16” bottom rail and 3-3/8” stiles
- Seg-top panel option available
- Impact available in out-swing only
- Interior and exterior grilles may be paired in a variety of combinations. However, some combinations are not available in every product.
- Please note, not all product options are available in Impact
- Swinging patio door hardware and sliding patio door hardware are produced by different manufacturers and the finishes will vary
