Select | Multi-slide Patio Door

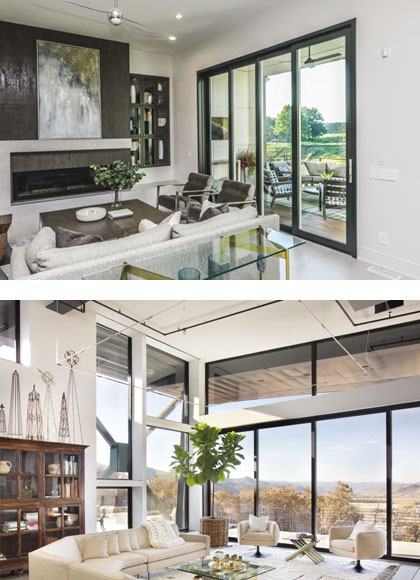

For inspiring views from floor to ceiling / treetop to ground level, Windsor’s Select line of multi-slide patio doors offers unique architectural appeal, blending the splendor of the outdoors with any interior space – living room, dining room, kitchen, bedroom – the design possibilities are limitless.

  • Choice of thermally broken, heavy-duty all aluminum exterior and interior, or thermally broken, heavy-duty aluminum exterior and wood interior
  • Stacking multi-slide system aligns all panels with the stationary panel when in the fully open position; all panels are visible
  • Pocket multi-slide system incorporates a pocket into the wall cavity to conceal all panels when they are in the fully open position
  • Door jamb widths vary depending on the number of panels in the multi-point door system and the handing
  • Up to five panels in any one direction, and 10 panels for a bi-parting multi-slide door
  • 2-3/8" thick panel construction
  • Narrow 3-3/16" wide panels to reveal more glass for beautiful views
  • Standard panel heights: 8-0, 9-0, 10-0, 11-0 and 12-0
  • Standard panel widths: 3-0, 4-0, 5-0 and 6-0
  • Maximum panel sizes: 5-0 x 12-0 and 6-0 x 10-0
  • Standard 1-1/8" surface mount sill with 2-1/2" recessed sill with or without drainage
  • Two-point locking gear with two-way adjustable keeper
  • End adjust Delrin® rollers
  • Flush mount handle available in black, bronze, white and satin chrome
  • Lead panel on pocket doors comes with a finger pull
Sill Options
Multi-slide 1-1/8" standard sill

Multi-slide 1-1/8" standard sill

Multi-slide 2-1/2" recessed sill no drainage

Multi-slide 2-1/2" recessed sill no drainage

Multi-slide 2-1/2" recessed sill with drainage

Multi-slide 2-1/2" recessed sill with drainage

Panel Corners
Multi-slide Alum Ext. Alum Int. Panel

Multi-slide Alum Ext. Alum Int. Panel

Multi-slide Alum Ext. Wood Int. Panel

Multi-slide Alum Ext. Wood Int. Panel

Standard Clad Colors

White

Linen

Ivory

Sandstone

Clay

Tan

Sage Brown

Walnut

Desert Dust

Bronze

Dark Bronze

Appalachian Brown

Red River Rouge

Cinnamon

Sage Green

Hunter Green

Military Blue

Clear

Dove Gray

Slate Gray

Charcoal Gray

Iron

Sable

Black

Feature Clad Colors

French Vanilla

Burnt Sun

Pueblo Tan

Dijon

Beige

Coastal Tan

Sierra Tan

Putty

Antique Bronze

Sunflower

Burnt Pumpkin

Copper

Brick Red

Redwood

Boysenberry

Patina Green

Camarillo Green

Midnight Blue

Stormy Monday

Dark Bronze

Matte Clad Colors

Matte Tan

Matte Desert Dust

Matte Desert Dust

Matte Bronze

Matte Sable

Matte Slate Gray

Matte Charcoal Gray

Matte Black

Interior Wood Species
Clear Select Pine

Clear Select Pine

Douglas Fir

Douglas Fir

Multi-slide Patio Door Hardware
Multi-slide Patio Door Handles

Flush mount

Available in four finishes.

Available Finish

White

White

Satin Chrome

Satin Chrome

Black

Black

Bronze

Bronze

Glass
LoE 366 - Standard

LoE 366 - Standard

Dual Low-E

Dual Low-E

LoE 270

LoE 270
