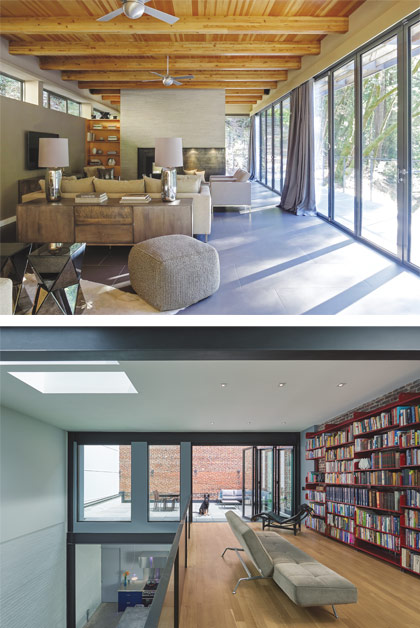

Combining beautiful style and effortless function, Windsor’s line of Select bi-fold patio doors is another option to connect the home’s interior space to outdoor patio living. These bi-fold doors fold like an accordion to create wide-open entryways. The hinge system provides stability and smooth operation while the multi-point locking system provides uncompromised security.
- Choice of thermally broken, heavy-duty all aluminum exterior and interior, or thermally broken, heavy-duty aluminum exterior and wood interior
- 2-5/8" thick panel construction on wood interior doors 2-3/8" thick panel construction on aluminum interior doors
- Narrow 2-1/16" wide panels to reveal more glass for beautiful views
- Multiple handing options for maximum 8 panels and 21 ft frame width; bi-parting can be 8L-8R with a maximum frame width of 42 ft
- Standard panel heights 8-0, 9-0, 10-0, 11-0 and 12-0
- Standard panel widths 2-6, 3-0, 3-6
- Maximum panel size 3-6 x 12-0
- Standard 2-3/16" surface mount, 3/4" recessed without drainage and 1-1/2" recessed with drainage sill options
- Three-point multi-point locking system on 8-0 through 10-0 tall doors; four-point multi-point locking system on doors over 10-0
- Handle activated concealed twin bolt system
- Bi-fold hardware finishes
- All aluminum door:
- Hinges, D-handle, twin bolt handle, top roller assembly and bottom hinge guide will match the color of the door
- Aluminum door with wood interior:
- Hinges: Interior hinges available in bronze or black; exterior hinges will match exterior door color
- Interior D-handle: Available in bronze or black
- Interior twin bolt handle: Available in bronze or black
- Top roller assembly: Interior available in bronze or black; exterior top roller assembly will match exterior door color
- Bottom hinge guide: Interior available in bronze or black; exterior will match exterior door color
- All aluminum door:
- Three handle styles available in black, bronze, white and satin chrome
